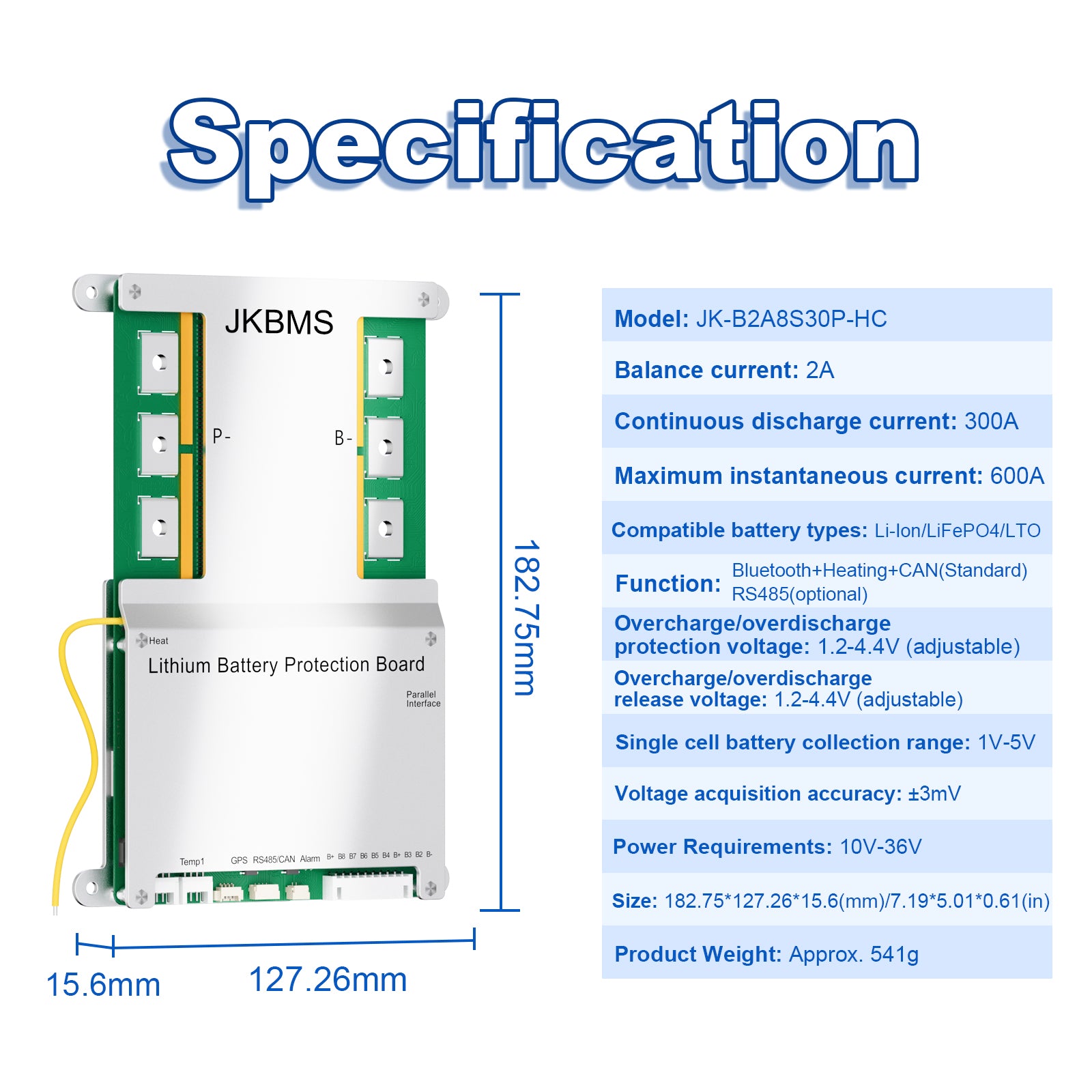

  • JKBMS JK-B2A8S30P-HC Dimensions & Parameter Chart
  • JKBMS JK-B2A8S30P-HCRPB Wiring Diagram & Port Description
  • JKBMS JK-B2A8S20P-HC APP Interface & Bluetooth Monitoring
  • JKBMS JK-B2A8S20P-HC Active Balancing Effect Comparison
  • JKBMS JK-B2A8S30P Features & Function Description
  • JKBMS JK-B2A8S30P-HCRPB Working Diagram & System Integration
  • JKBMS JK-B2A8S30P Packaging & Accessories
  • JKBMS JK-B2A8S20P-HC Application Scenarios
1 9

JKBMS

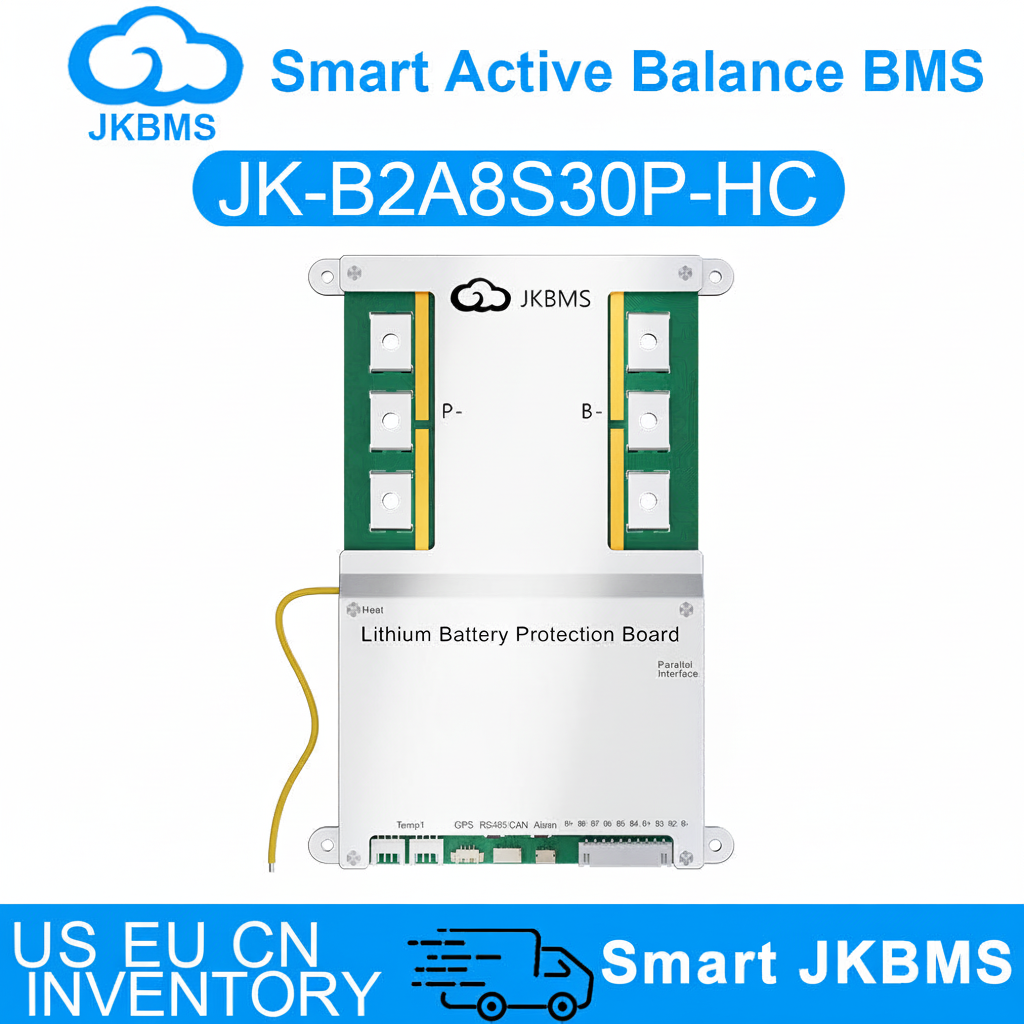

JKBMS JK-B2A8S30P-HC | 300A Smart BMS for RV, Small ESS & Inverter Integration | 3S-8S LiFePO4 Li-ion | 2A Active Balance + Heating + CAN

JKBMS JK-B2A8S30P-HC | 300A Smart BMS for RV, Small ESS & Inverter Integration | 3S-8S LiFePO4 Li-ion | 2A Active Balance + Heating + CAN

$139.99 USD
$139.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

System-Integrated Battery Management — JKBMS JK-B2A8S30P-HC 300A Smart BMS for 3S–8S

The JK-B2A8S30P-HC adds Heating film control, CAN bus, and UART to the 300A / 2A active balance platform — enabling direct inverter integration and small home ESS support. When your battery needs to communicate with an inverter or energy management system, this is the version that makes it possible.

Compatible chemistries: LiFePO4 / Li-ion / LTO

Key Specifications

Parameter Specification
Model JK-B2A8S30P-HC
Cell Configuration 3S–8S (LiFePO4 / Li-ion) · 7S–8S (LTO)
Continuous Current 300A
Active Balance Current 2A
Standard Communication Bluetooth + UART + CAN
Heating Support ✅ Heating film control port (built-in)
Compatible Chemistry LiFePO4, Li-ion, LTO
Protection Over-charge, Over-discharge, Over-current, Short-circuit, Over/Under-temperature

Note: LTO (Lithium Titanate) cells require a minimum of 7S configuration.

What the HC Version Adds

🔌 CAN + UART — Inverter Integration & Display Support

CAN bus enables direct BMS-to-inverter communication. UART connects to LCD displays for local panel monitoring. For RS485/SCADA integration or hard parallel expansion, see the HCR Version (HCRPB).

🔥 Heating Film Control — Low-Temperature Protection

Built-in heating film control port activates the heating film when cell temperature drops below the configured threshold — preventing cold-charge damage to LiFePO4 cells in cold-climate installations.

📦 Soft Parallel via PLINK Module

Supports soft parallel expansion via the optional PLINK Module (sold separately). Hard parallel via Parallel Module is not supported on the HC version.

Who Is This BMS For?

  • 🏠 Small home ESS (inverter-integrated)
  • 🔋 Heavy-duty backup power systems with CAN inverter communication
  • 🛥 RV & marine with high-current inverter integration
  • 🔦 Large off-grid power systems requiring BMS-inverter communication
  • 🏭 OEM manufacturers of 300A integrated battery systems

Compare Versions — Find the Right Fit

Feature Standard HC (This Model) HCR Version (HCRPB) *
Bluetooth ✅ ✅ ✅
UART (LCD port) ✅ ✅ ✅
CAN Bus ❌ ✅ ✅
Heating Film Control ❌ ✅ ✅
RS485 ❌ ❌ ✅
Soft Parallel (PLINK Module) ❌ ✅ ✅
Hard Parallel (Parallel Module) ❌ ❌ ✅
Buzzer Alert ❌ ❌ ✅

* HCR Version (HCRPB) includes Heating Film Control, CAN Bus, RS485, Parallel Module interface, and Buzzer Alert as standard.

📩 Need RS485 or hard parallel? Contact us about the HCR Version (HCRPB).
