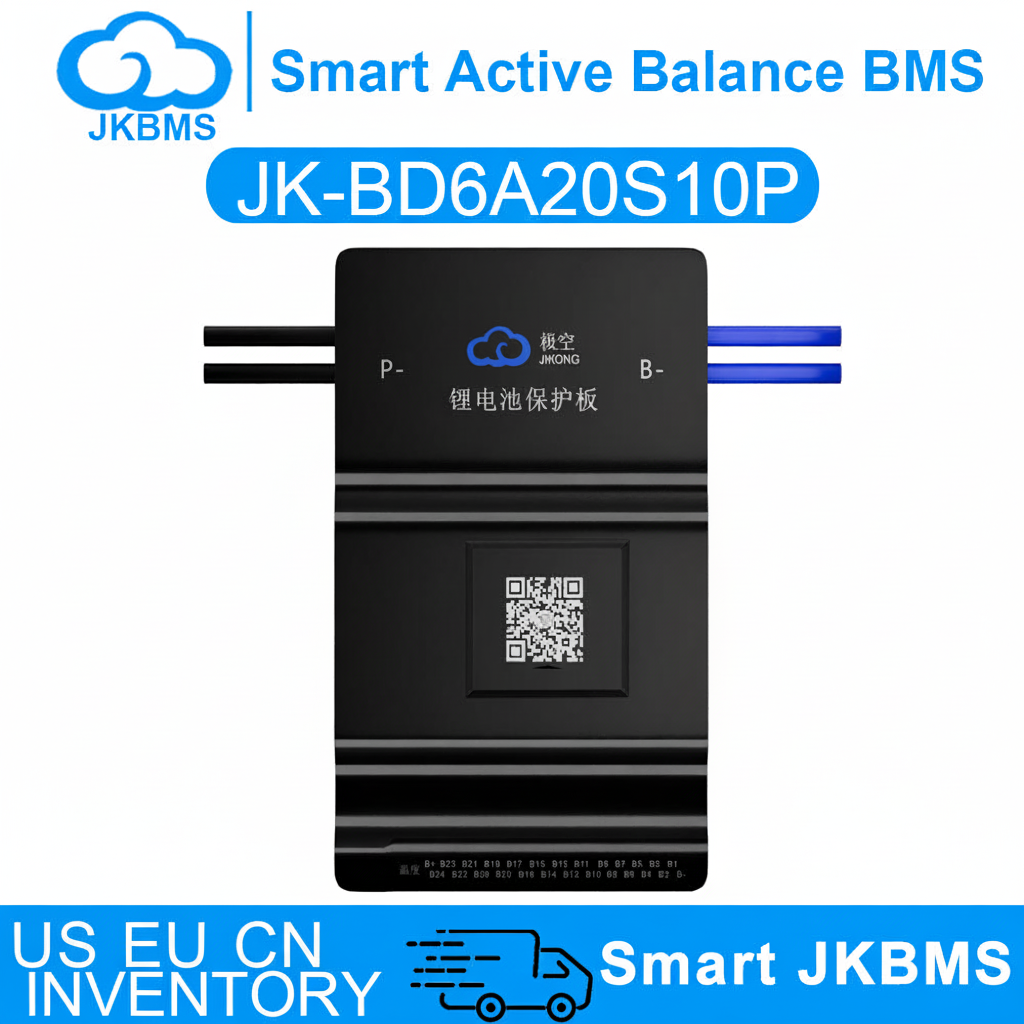

Light to Mid-Load Protection Across 8S–20S — JKBMS JK-BD6A20S10P 100A Smart BMS
The JK-BD6A20S10P covers the 8S–20S voltage range (24V–60V) at 100A continuous current — the right fit for commuter e-bikes, electric scooters, light electric vehicles, and backup power systems in the light-to-mid load category. With 0.6A active balancing, built-in Bluetooth, and UART port for LCD display connection, it keeps your pack performing consistently through every cycle.
Compatible chemistries: LiFePO4 / Li-ion / LTO

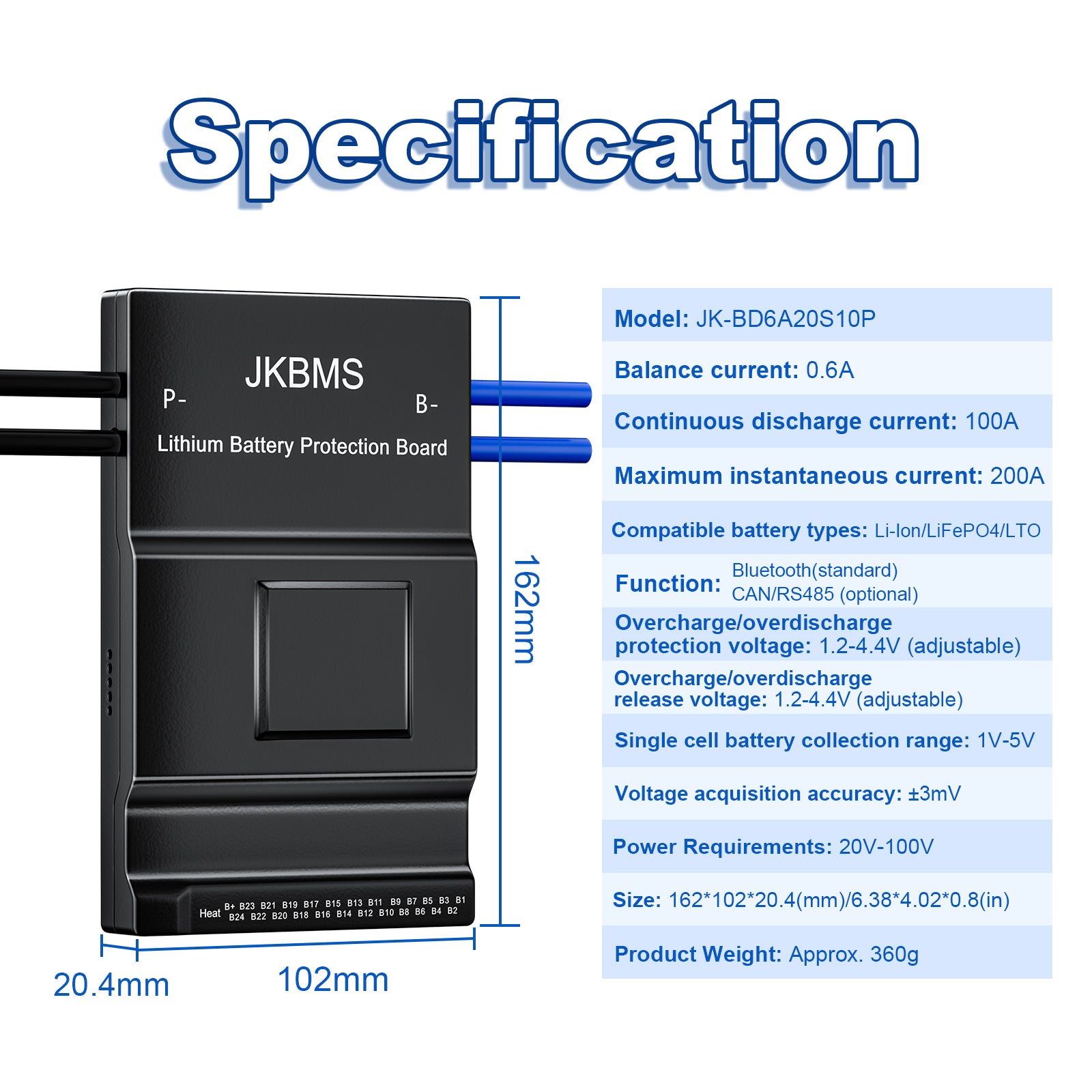

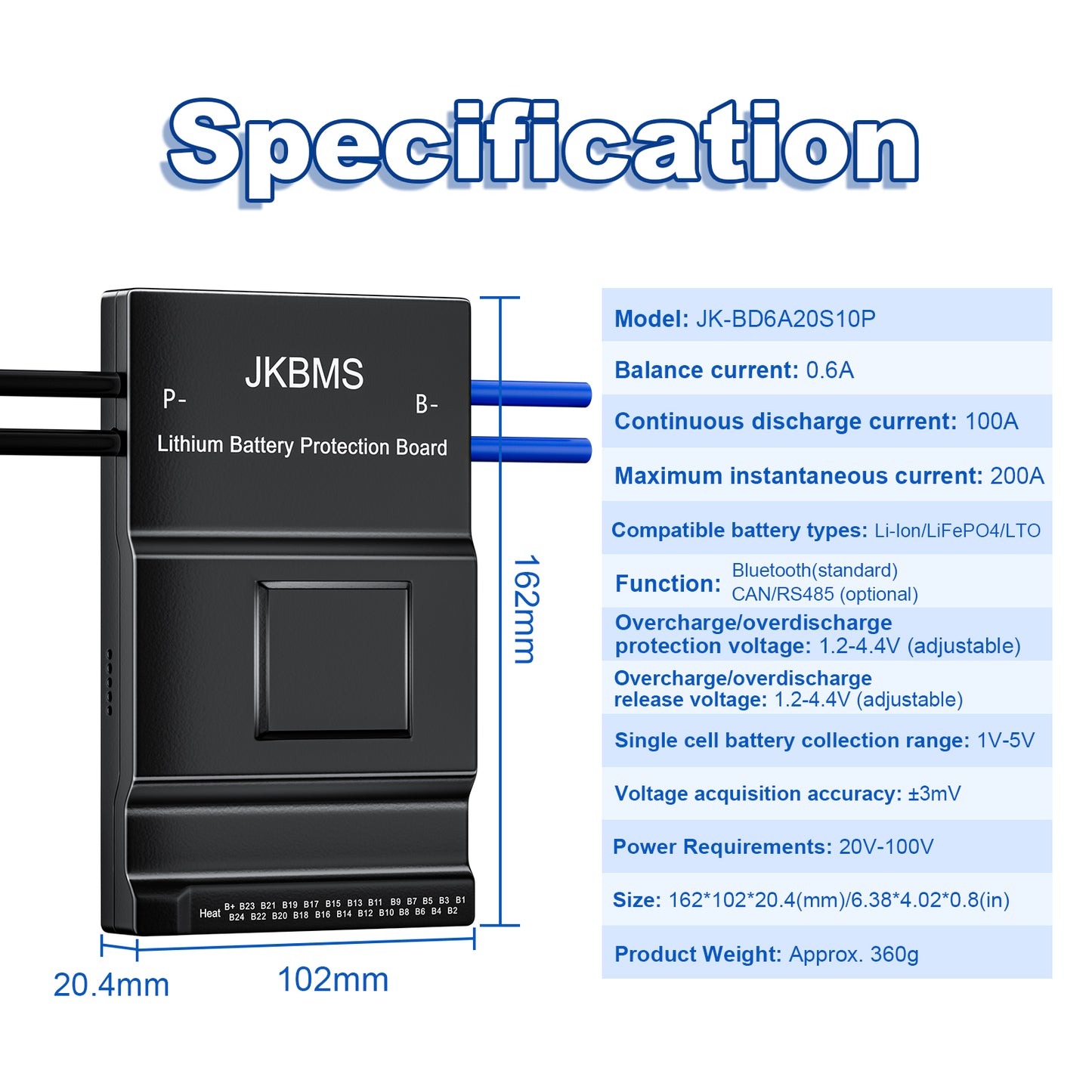

Key Specifications
| Parameter | Specification |
|---|---|
| Model | JK-BD6A20S10P |
| Cell Configuration | 8S – 20S (24V – 60V) |
| Continuous Current | 100A |
| Active Balance Current | 0.6A |
| Standard Communication | Bluetooth + UART (LCD display port) |
| Optional Add-ons | RS485 / CAN / LCD Display / Heating interface |
| Compatible Chemistry | LiFePO4, Li-ion, LTO |
| Protection | Over-charge, Over-discharge, Over-current, Short-circuit, Over/Under-temperature |
Voltage Platform & Load Class — Where This BMS Fits
📊 8S–20S (24V–60V) — Light to Mid-Load Applications
The 8S–20S platform covers the voltage range used by commuter e-bikes and electric scooters (24V–36V), through to light electric vehicles and backup power systems running at 48V–60V. At 100A, this BMS is sized for light-to-mid load applications — commuter and recreational use, small UPS systems, and telecom backup packs where sustained high-current draw is not the primary requirement.
⚡ 0.6A Active Balancing — Energy Transferred, Not Wasted
Passive balancing burns off excess cell energy as heat. The JK-BD6A20S10P actively redistributes charge between cells, keeping your pack balanced and efficient through every cycle — more usable capacity and longer pack life compared to passive alternatives.
💻 Bluetooth + UART — Two Ways to Monitor
Monitor via Bluetooth app on your phone, or connect an optional LCD display via the built-in UART port for a dedicated panel display — no additional adapter required.
Who Is This BMS For?
- 🚲 Commuter e-bikes & electric scooters (24V–48V, light-to-mid load)
- 🔦 Portable power stations and recreational battery packs
- 🔋 Small UPS & backup power systems (24V–60V)
- 📦 Telecom backup battery packs
- 🏭 OEM manufacturers of 24V–60V 100A lithium battery packs
Optional Add-on Interfaces
Standard configuration includes Bluetooth + UART. Expand with:
- RS485 — Inverter and SCADA integration
- CAN Bus — BMS-to-inverter communication
- LCD Display — 3.2" or 4.3" touchscreen monitor (connects via UART)
- Heating Interface — Low-temperature battery protection
Compare Versions — Find the Right Fit
| Feature | Standard (This Model) | HC Version | HCR Version |
|---|---|---|---|
| Bluetooth | ✅ | ✅ | ✅ |
| UART (LCD port) | ✅ | ✅ | ✅ |
| CAN Bus | ❌ | ✅ | ✅ |
| RS485 | ❌ | ✅ | ✅ |
| Heating Film Control | ❌ | ✅ | ✅ |
| Soft Parallel (PLINK Module) | ❌ | ✅ | ✅ |
| Hard Parallel (Parallel Module) | ❌ | ✅ | ✅ |
| Enhanced Parallel Interface | ❌ | ❌ | ✅ |
| Buzzer Alert | ❌ | ❌ | ✅ |
| Small Home ESS Support | ❌ | ✅ (via PLINK / Parallel Module) | ✅ (Full support) |
📩 Not sure which version fits your application? Contact us — we’ll help you choose the right configuration.
